Why Correct Terminals and Termination Matter in Every Electrical Installation
In the electrical industry, we often focus on the big items: distribution boards, breakers, cables, inverters, solar systems, and compliance documents. But one of the most important parts of any installation is sometimes one of the smallest — the terminal or connector.
A poor termination can turn a perfectly sized conductor and correctly selected protective device into a future failure point. It may look neat on the outside, but if the wrong terminal, wrong crimping tool, wrong torque, or wrong material combination is used, that connection can create resistance, heat, nuisance tripping, equipment failure, or even a fire risk.
A good electrical installation is only as strong as its weakest connection.
The purpose of a terminal or connector
A terminal is not just there to “hold the wire in place.” Its job is to create a safe, secure, low-resistance electrical connection between the conductor and the equipment, accessory, busbar, device, or another conductor.
The termination must not negatively affect the character of the conductor. That means it should not damage the conductor, cut away strands, crush it incorrectly, loosen over time, or introduce unnecessary resistance into the circuit.
A proper termination should:
Allow full current flow without overheating.
Maintain mechanical strength.
Protect the conductor from damage.
Suit the type and size of conductor.
Remain secure under normal operating conditions.
Be compatible with the material being connected.
Be done according to the manufacturer’s requirements.
The moment a termination changes the condition of the conductor or creates an extra resistance point, the installation is no longer as reliable as it should be.
Resistance at a connection is dangerous
Every electrical connection has some level of resistance, but in a proper termination this resistance must be extremely low. When a connection is loose, dirty, poorly crimped, under-tightened, over-tightened, corroded, or made with the wrong terminal, resistance increases.
Increased resistance causes heat.
Heat can then lead to:
Insulation damage.
Discolouration of terminals.
Burnt connectors.
Voltage drop.
Equipment malfunction.
Loose connections becoming worse over time.
Possible arcing or fire risk.
This is why a termination is not just a “small detail.” It is a critical safety point.
The correct terminal must match the conductor

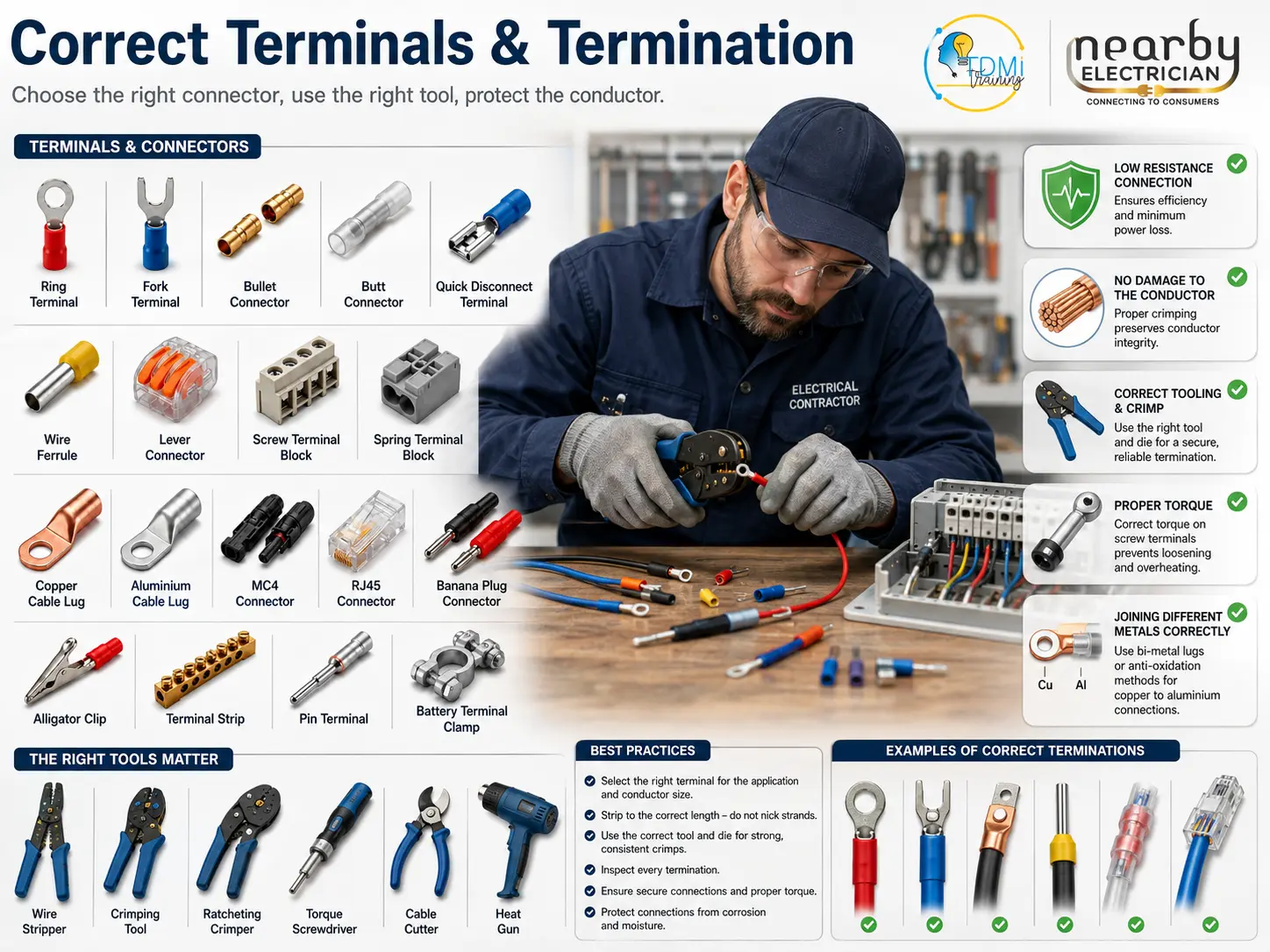

Different terminals exist because different applications require different solutions. A ring terminal, ferrule, lug, pin terminal, butt connector, lever connector, terminal strip, MC4 connector, battery terminal, or RJ45 plug all have specific purposes.
Choosing the wrong one can cause problems.
For example, a flexible stranded conductor should not simply be forced under a screw terminal if the terminal is not designed for that conductor type. The screw may damage the strands or only clamp part of the conductor. In many cases, a correctly sized ferrule can provide a better and more reliable termination for flexible conductors.
A cable lug must match the conductor size and material. A lug that is too large may not crimp correctly. A lug that is too small may require strands to be cut away, which is never acceptable because it reduces the conductor’s current-carrying ability.
The golden rule is simple:
Do not make the conductor fit the terminal. Select the terminal that fits the conductor.
The right tool is just as important as the right terminal 🛠️
A proper terminal can fail if it is installed with the wrong tool.
Crimp terminals, cable lugs, ferrules, MC4 connectors, and many other connectors are designed to be installed with specific tools. Using pliers, side cutters, hammers, or incorrect crimpers can create a connection that looks acceptable but is electrically and mechanically weak.
A correct crimp should compress the conductor and terminal in a controlled way. It must grip the conductor firmly without cutting, cracking, or over-compressing it.
The right tool helps ensure:
Correct crimp pressure.
Correct crimp shape.
Secure mechanical strength.
Low-resistance contact.
Repeatable quality.
Compliance with the connector manufacturer’s requirements.
This is especially important in solar PV work, battery systems, control panels, and high-current terminations where poor connections can create serious failures.
A professional electrician does not only carry tools to get the job done — he carries the correct tools to get the job done safely.
Over-tightening can be just as bad as under-tightening
Many people understand that a loose terminal is dangerous, but fewer realise that an over-tightened terminal can also cause problems.
If a screw terminal is under-tightened, the conductor may loosen and heat up. If it is over-tightened, the conductor can be damaged, strands can be cut, the terminal can deform, or the screw mechanism can be weakened.
This is why torque matters.
Where manufacturers provide torque settings, those values should be followed. A torque screwdriver is not a luxury tool in modern electrical work — it is a professional tool that helps create consistent, safe, and compliant terminations.
Joining different metals: copper, aluminium, brass and steel
Another important part of termination is material compatibility.
Different metals react differently when joined together. Copper and aluminium, for example, should not simply be connected together without the correct approved method. When dissimilar metals are incorrectly joined, corrosion can develop at the connection point, especially where moisture, heat, or environmental exposure is present.
This corrosion increases resistance, and once resistance increases, heat follows.
When different metals must be connected, the electrician must use the correct solution, such as:
Approved bi-metal lugs.
Connectors rated for both copper and aluminium.
Manufacturer-approved jointing methods.
Anti-oxidation compound where specified.
Correct torque settings.
Suitable enclosure protection against moisture and contamination.
The point is not only to make the connection work today. The point is to make sure the connection remains safe for years.
Environmental conditions also matter
A connector that works inside a clean distribution board may not be suitable outdoors, in a roof space, in a damp area, in a solar installation, or in an industrial environment.
Before selecting a connector, consider:
Is it exposed to moisture?
Is it exposed to heat?
Will there be vibration?
Is it used indoors or outdoors?
Is it part of a DC or AC circuit?
Is it carrying signal, control, or power?
Is it exposed to chemicals, dust, or corrosion?
Does it need strain relief?
For example, an MC4 connector in a solar PV installation must be correctly matched, properly crimped, weather-resistant, and suitable for DC conditions. A general connector used in the wrong environment may not provide the protection required.
Inspection and testing must include terminations
A termination may look fine at first glance, but proper inspection goes deeper than appearance.
When checking terminations, look for:
Loose conductors.
Damaged insulation.
Exposed copper.
Cut or missing strands.
Discolouration from heat.
Incorrect ferrules or lugs.
Mixed conductor sizes under one terminal where not allowed.
Poorly supported conductors.
Corrosion.
Incorrect connector type.
Wrong crimping marks or incomplete crimps.
Testing can also reveal termination problems. Voltage drop, high resistance, heating under load, or intermittent operation can all point back to poor connections.
Many electrical faults are not caused by the cable itself — they are caused by the point where the cable was terminated.
Good workmanship protects your name
A professional termination is a reflection of professional workmanship.
Anyone can push a wire into a terminal and tighten a screw. But a competent electrician understands conductor type, terminal rating, crimp quality, torque, metal compatibility, environmental conditions, and long-term reliability.
The difference between average and professional workmanship is often found in the small details — and terminations are one of those details.
A neat termination is good.
A correct termination is better.
A tested, compliant, and suitable termination is the standard we should aim for.
Final thought
In electrical work, small mistakes can carry big consequences. A terminal may be small, but it carries current, responsibility, and risk.
The correct terminal, installed with the correct tool, in the correct way, protects the conductor, the equipment, the installation, and the people who depend on it.
As electricians, contractors, and registered persons, we must never treat terminations as a quick final step. They are part of the safety system.
Because at the end of the day:
A strong installation starts with strong connections. ⚡
