The Importance of Earthing and Bonding in Electrical Installations

Electricity is a cornerstone of modern life, powering our homes, businesses, and industries. However, with great power comes significant risks if safety measures are not in place. Two critical components of electrical safety are earthing and bonding. These practices protect people, animal, property, and equipment from electrical faults. This blog explores their importance, delves into testing principles, and discusses how to verify their effectiveness.

What Are Earthing and Bonding?

• Earthing: This involves connecting electrical systems to the earth to provide a low-resistance path for fault currents. The primary purpose is to prevent electric shock by dissipating excess current safely into the ground.
• Bonding: Bonding connects metallic parts of an electrical installation to ensure they have the same electrical potential, minimizing the risk of electric shock.

Why Are Earthing and Bonding Crucial?

1. Protection Against Electric Shock:

   • Fault currents can cause exposed metal parts to become live. Proper earthing ensures this current is redirected safely into the ground.

2. Equipment Safety:

   • Electrical surges or faults can damage appliances and systems. Earthing safeguards equipment by providing a direct path for stray currents.

3. Fire Prevention:

   • High fault currents can cause overheating and sparks, leading to fires. An effective earthing system reduces this risk.

4. Harmonizing Electrical Potential:

   • Bonding ensures that all exposed conductive parts remain at the same potential, eliminating the possibility of shock due to differences in voltage.

Key Testing Principles for Earthing and Bonding

Testing ensures that earthing and bonding systems are functioning correctly. Regular testing is essential for compliance with safety standards and for preventing accidents. Below are the key testing principles:

1. Earth Continuity Test:

• Verifies that all conductors are properly connected to the earthing system.
• Procedure: Use an ohmmeter to measure the resistance between the earth terminal at point of control and the exposed conductive parts at point of consumptions.
• Acceptable Range: Resistance should be low, typically less than Table 8.1 and 6.28a.

2. Earth Resistance Test:

• Measures the resistance of the earth electrode to the surrounding soil.
• Procedure: Utilize an earth tester with three electrodes to inject and measure current. The test checks the ability of the earth to dissipate fault currents.
• Acceptable Values: Below 10 ohms is ideal, but values may vary depending on soil conditions.

3. Insulation Resistance Test:

• Ensures that conductors and insulators are not leaking current.
• Procedure: Apply a high voltage using an insulation tester and measure the resistance between live conductors and earth.
• Standards: Resistance should be greater than 1 megohm.

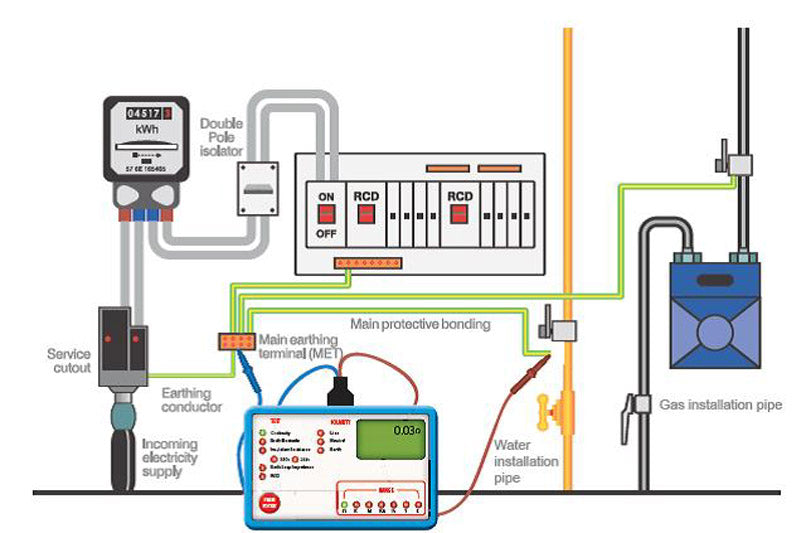

4. Bonding Resistance Test:

• Checks the continuity and effectiveness of bonding connections.
• Procedure: Measure resistance between bonded metal parts to ensure uniform potential.
• Result: Resistance should be close to zero (max allowed is 0.2ohm).

Verification of Earthing and Bonding

Verification involves inspecting and testing the system to ensure compliance with standards like SANS 10124-1, IEC 60364, or local regulations. The process includes:

1. Visual Inspection:

   • Ensure all connections are secure, corrosion-free, and comply with design specifications.

2. Periodic Testing:

   • Perform scheduled tests to detect any degradation in the earthing or bonding systems.

3. Documentation:

   • Record test results, observations, and corrective actions. This documentation is essential for compliance and future maintenance.

Common Mistakes to Avoid

• Using Incorrect Materials: Substandard conductors or electrodes can fail under fault conditions.
• Neglecting Maintenance: Earthing and bonding systems degrade over time due to environmental factors and wear.
• Ignoring Local Standards: Compliance with national and international codes is essential for system reliability and safety.

Conclusion

Earthing and bonding are indispensable in any electrical installation. They safeguard lives, prevent equipment damage, and mitigate fire hazards. Adhering to testing principles and verifying the system ensures that these protective measures remain effective over time.

Remember: Safety begins with a solid grounding—both literally and figuratively.

If you need help designing or testing your earthing and bonding systems, consult a certified electrical professional. Prioritize safety in every installation—it’s non-negotiable.
